Determine the lower frequency limit (critical frequency) for the integrator circuit shown in Fig. 9.14.



Determine the lower frequency limit (critical frequency) for the integrator circuit shown in Fig. 9.14.



Answers

---

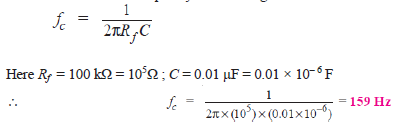

- The critical frequency for the integrator circuit shown in Fig. 9.14 is given by;

---

Wilfykil answered the question on August 16, 2019 at 12:06
