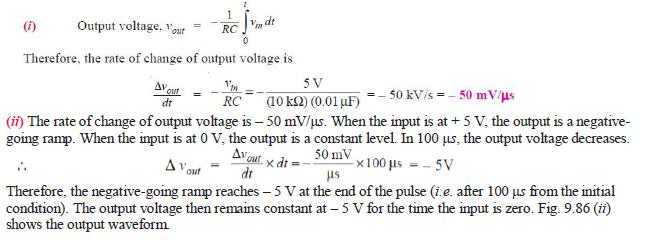

Determine the rate of change of the output voltage in response to a single pulse input to the integrator circuit shown in Fig. 9.15 (i).

(i) Determine the rate of change of the output voltage in response to a single pulse input to the integrator circuit shown in Fig. 9.15 (i).
(ii) Draw the output waveform.

Answers

Wilfykil answered the question on August 16, 2019 at 12:09

Answer Attachments

Next: If a factory produces 1000 kg of sodium hydroxide in every 24 hours, calculate the required current per day. (H= 1.0, Na = 23.0, O...

Previous: For the integrator circuit shown in Fig. 9.16 (i), how long does it take for the output to reach saturation?

View more Electronics Questions and Answers | Return to Questions Index
