Describe the Arrow Diagramming Method (ADM) of activity sequencing



Describe the Arrow Diagramming Method (ADM) of activity sequencing



Answers


Francis
- Also called activity-on-arrow (AOA) project network diagram
- Activities are represented by lines with arrows
- Nodes or circles are the starting and ending points of activities

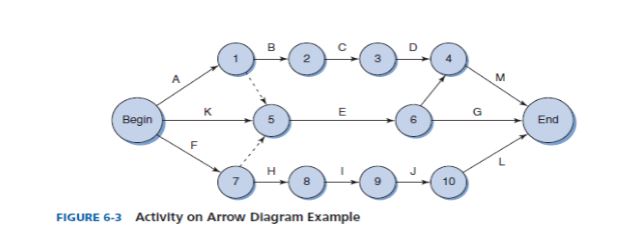

Sample Activity-on-Arrow (AOA) Network Diagram
Capture 1.JPG

Lines with arrows represent tasks
Circles with words or numbers represent the begin or end of a task
Key Drawback: Can only show finish-to-start dependencies
francis1897 answered the question on March 13, 2023 at 13:50


Next: State the activity dependency types
Previous: Describe the process of creating a sample activity-on-arrow (AOA) network diagram

View More Management of IT Projects Questions and Answers | Return to Questions Index
